Solar Powered Moisture Based/Timer Auto Irrigation System
2015-08-04
- Model:
- Standard package(GG-004C-1): Moisture sensor(1); Controller with stainless box(1); 1" Plastic latching valve(1); 12V, 2300mAh battery(1)
- Standard package(GG-004C-2): Moisture sensor(1); Controller with steel box(1); 1" Plastic latching valve(1); 12V, 2300mAh battery(1)
- Click hereto download installation video.
Product introduction<div

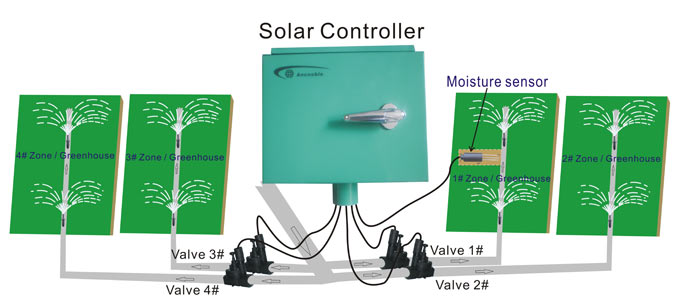

Solar Powered Moisture Based/Timer Auto Irrigation System GG-004 Series
4 Zones 4 Valves
| Valve setup type | Matching valve |  |  |
| Latching valve | 6V-12V latching valve（Powered by solar） | ||
| 12V DC valve | 12V DC valve（Powered by solar） | ||
| Switch | ≤24V AC/DC Valve (With External Power) |
General Description:
Advanced Moisture-Controlled Solar-Powered auto irrigation systems GG-004 can control up to 4 valves.
When at moisture based mode, the moisture sensor periodically collect moisture samples from the field to the controller. The controller
will do analysis and decide to open/close the valve if need.When first zone is been irrigated, the controller will record irrigation length,
then repeat to other 3 zones. Optimize irrigation, reduce initial setup cost. It is an stand alone controller with green solar power, will
reduce cost and protect environment. This low carbon and sustainable system is very good for area which has no enough water pressure,
or for uniform garden、golf course、residence community.

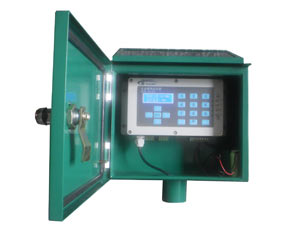

（The Solar controller with painted stainless steel box or painted zinc plated iron box）
| Picture | Standard package | Add to Cart | |
|---|---|---|---|
GG-004C-1 | Moisture sensor(1); Solar controller with stainless box(1); 1" Plastic latching valve(1); 12V, 2300mAh battery(1) | Price: $510.94 With Valve Type:
| |
GG-004C-2 | Moisture sensor(1); Solar controller with steel box(1); 1" Plastic latching valve(1); 12V, 2300mAh battery(1) | Price: $342.13 With Valve Type:
| |
.jpg "4-Valve-Solar-Powered-Auto-Irrigation-Controller(GG-004C-1)")
.jpg "4-Valve-Solar-Powered-Auto-Irrigation-Controller(GG-004C-2)")

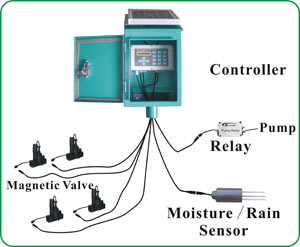

4 Valve Solar Powered Auto Irrigation Controller
Including both "Moisture Control" and "Timer Control" modes
Features:
l Can select "Moisture Control" or "Timer Control" mode.
l Solar powered, low carbon green power, solid box, great for outdoor applications.
l Controls opening/closing of up to 4 valves. For big garden or cultivated area with not
enough water pressure for irrigating all at once, and saves setup cost.
l User can choose following valve types: Latching valve, 12V DC valve, relay controlled up to 24V DC valve with
external power supply.
l Can manually open/close valves for emergency.
l Can wire one 12V DC relay to control one pump.
l System is easy to install, easy to use.
l Rugged box shell design, is good looking.
Feature under “Moisture control” mode:
l According to soil sample collected by the built in moisture sensor and the dry/wet control levels setup by user, to control open/close of
the #1 valve, then using the same duration, irrigate the other 3 zones.
l Can apply to any soil type, accurately to keep the soil moisture in the setup range, provides low cost, precise auto irrigation.。
l User can learn, setup and adjust moisture dry/wet control levels according to local condition.
l With build in clock, user can setup periods to forbid irrigation.
l LCD will in sequence show: Current operating mode and system time, 4 valve's status, system operating status and current moisture %.
l Manual operation for convenience.
l Can setup maximum irrigation length.
Feature under “Timer control” mode:
l Can set up different timer schedules for different valves.
l Can setup three times irrigation schedules for each valve.
l Using the moisture sensor as rain sensor. User can set up maximum wet control level, so when it is reached by rain, irrigation will end.
l LCD will in sequence show: Current mode and system time, 4 valves irrigation status, moisture level collected by the rain sensor.
Customer can choose ship from California (USA)Suggested maximum moisture sensor extention cable is 50 meters except moisture sensor for GG-005 series.
Suggested maximum maganetic valve extention cable is 20 meters.
We will send the cargo by UPS, DHL.
More information, please contact us by email, sales@anctech.com
