Moisture-Controlled Solar-Powered Controller
2015-08-04
- Model:
- Standard package: Moisture sensor(1); Solar controller(1); 1" Plastic latching valve(1); 7.2V, 800mAh(1)
- Package size: 40cm*30cm*20cm
- Weight: 5KG
- Click hereto download installation video.
Product introduction
Moisture-Controlled Solar-Powered Controller US Patent is Pending. Chinese Innovation Patented.

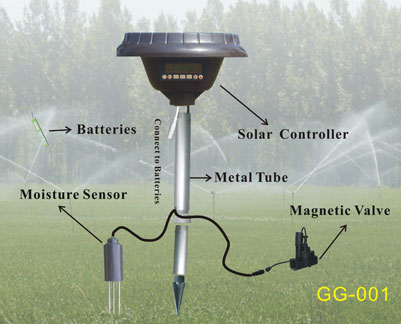

.jpg "Moisture-Controlled-Solar-Powered-Controller(GG-001-series).jpg")

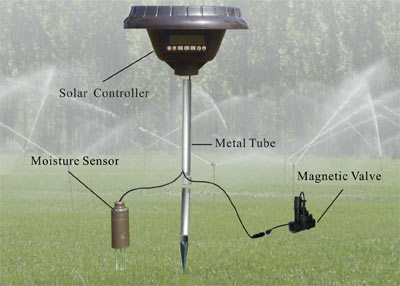

Principle: The moisture sensor periodically collects soil moisture samples, sends to main controller.
- Introduction:This system is for your backyard organic vegetables, fruit trees, green lawn and agriculture.Controls open/close of a one to three inch magnetic valve directly according to moisture levels collected by soil moisture sensor in the system, to realize automatic irrigation.Accurately keep correct moisture level once user sets up wet/dry control levels, which includes any weather condition. Really optimize irrigation, save water, money, trouble free and protect the environment!Can install with any existing or new, drip or sprinkler irrigation system, it replaces the existing valve with a low power latching valve.Timer is only for your lawn; grass will grow back from dead but not vegetables.Features:lUser sets up/adjusts wet/dry control levels.lCan match latching magnetic valves from 1" to 3".lCurrent moisture % display on the LCD screen as reference.lLCD display for the set up dry/wet control moisture levels.lUser sets up/adjusts forbidden irrigation time.lApplies to any kind of soil and plant.lSolar cell powered, easy to install.lLCD display, easy to set up and operate.lLow power consumption design can operate greater than 15 days during cloudy days.
Hot day, irrigate more;Cold day, naturally irrigate less.That is what our controller doing!
- Principle:The moisture sensor periodically collects soil moisture samples, sends to main controller. Main controller does analysis according to the collected data, then control opens/closes the magnetic valve.Function:Base on GG-001B:lAdded timer which can set up to 3 times a day, different irrigation time for each day of a week. Or different forbidden irrigation time for each day.lUser choice of moisture controlled auto/timer mode.lLCD current moisture display.lUnder adjusting menu to check the set up dry/wet control moisture levels.lUser can adjusts wet/dry control levels on the LCD screen.
| Picture | Standard package | Add to Cart | |
|---|---|---|---|
GG-001B | Moisture sensor(1); Solar controller(1); 1" Plastic latching valve(1); 7.2V, 800mAh(1) | Price: $192.29 With Valve Type:
| |
GG-001C | Moisture sensor(1); Solar controller(1); 1" Plastic latching valve(1); 7.2V, 800mAh(1) | Price: $192.29 With Valve Type:
| |
Customer can choose ship from California (USA)
We will send the cargo by UPS, DHL.
More information, please contact us by email, sales@anctech.com
Suggested maximum moisture sensor extention cable is 50 meters except moisture sensor for GG-005 series.
Suggested maximum maganetic valve extention cable is 20 meters.
